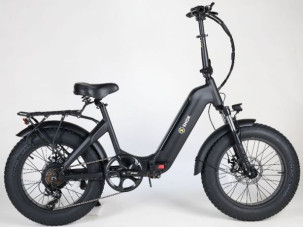

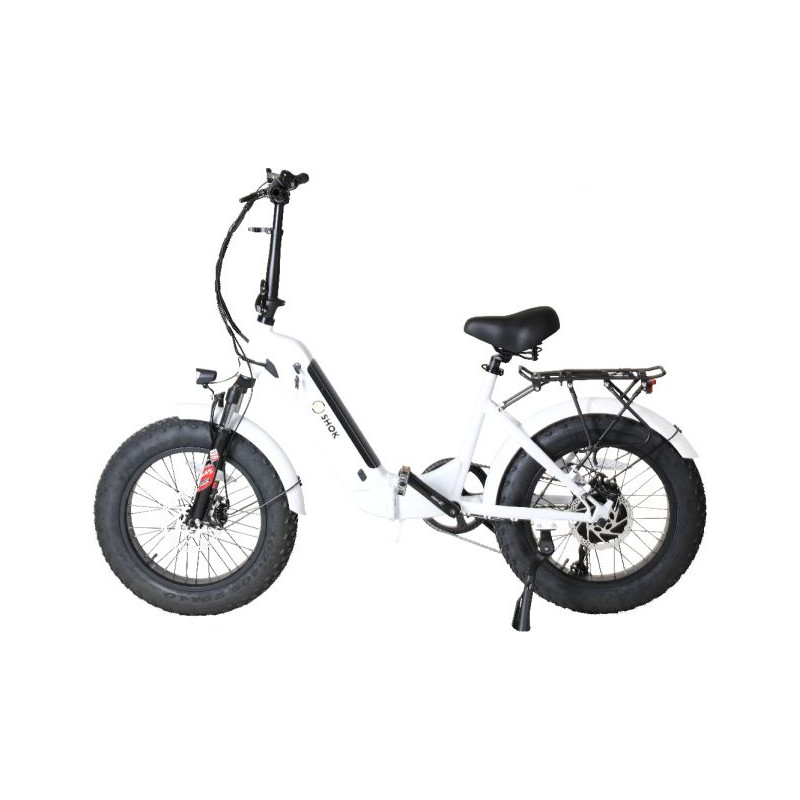

SHOK Pulsar 2.0 – 48V / 500W Folding Electric Bike

The SHOK Pulsar 2.0 is a folding electric bike designed for those seeking flexibility, power, and comfort in all their travels. Whether in the city, on the trails, or traveling, it goes everywhere with you thanks to its compact and robust design.

Its 500W rear motor develops 85 Nm of torque, perfect for Take on varied terrain and ensure quick starts. Powered by a 48V 10.4Ah lithium battery integrated into the frame, the Pulsar offers up to 64 km of range depending on conditions.

Comfortable and maneuverable, it is equipped with:

• Mozo front suspension to absorb shocks

• Wide 20x4-inch tires offering excellent grip on road, sand, snow, or dirt

• Hydraulic disc brakes for precise braking in all weather

• A 7-speed Shimano drivetrain to adapt to uneven terrain

The multifunction LCD display shows your speed, distance, assistance level, and battery in real time. The automatic front LED lighting ensures your visibility after dark.

Thanks to its #6061 aluminum folding frame, the Pulsar 2.0 folds easily for transport in a car trunk, RV, or any tight space. The integrated rear rack makes it easy to carry your essentials. Why choose the SHOK Pulsar 2.0?

• Designed for off-road and urban use

• Suitable for riders of different sizes thanks to its adjustable saddle

• Easy to transport, ideal for adventures and daily commuting

• Built with reliable components and parts from recognized brands (Shimano, Mozo, Innova)

The SHOK Pulsar 2.0 is ready to follow you wherever your adventures take you. Ride with complete freedom.

Technical specifications:

Electric

• Motor and rear wheel assembly: 48V, 500W electric motor with Hall sensor and armature sensor. High-torque motor, 20 x 4.0 profile, with 175 mm dropout.

• 48V Charger (54.6V Output), 2A (2000mA), DC2.1 Port, Lithium-Ion, UL/ULC Certified

• Controller: 48V, 20A, Intelligent Vector Sine Wave

• Thumb Throttle: 22mm/0.87in, Wuxing 130X Universal 12-72V (12V, 24V, 36V, 48V, 60V, 72V), Waterproof

• LCD Display/Dashboard: Left-hand mounting, EN06 profile. Dimensions: 48.1mm x 82.1mm x 12.5mm, approximately 2-inch screen. UART communication supported. Multiple functions: display speed, distance, power, time, headlights, start/stop, run, mode/settings. Operating temperature range: -20°C to +60°C. Waterproof rating: IP65 and CE/ROHS certified. Compatible with 24V, 36V, 48V, and 60V.

• Battery Management System (BMS), 48V, 30A, continuous, for lithium-ion battery

• Battery: Lithium-ion 48V, 10.4Ah, 500Wh battery, DC2.1 port profile.

• LED Front Light / Headlight: Site-Lite brand, model HL1900

• Pedal Assist Sensor (PAS): Step Rate Speed ​​Sensor, 150mm long

• Bus Cable: 1T5 bus cable, 1200mm base cable with 4-pin connector. Total length (from connector): 100mm for the display, 120mm for the front and rear brakes, and 250mm for the throttle.



Mechanical

• Bottom Bracket: Neco threaded steel bottom bracket, B911 profile, 100mm core length with a total length of 164mm

• Freewheel: Shimano 7-speed multi-wheel sprocket. AMFTZ5007428 (AMF-TZ5007428), MF-TZ500-7

• Handlebar: Promax 6061 aluminum alloy, HB-T305 640L profile, 640mm length

• Stem: PROMAX 6061 aluminum alloy head tube, FH05W profile

• Chain: KMC bicycle chain, Z7RB profile, 120 links, rustproof

• Crankset: PROWHEEL crankset, PRO-548PP-3 profile, 48 teeth x 165 mm. Forged AL-6061-T6 aluminum sprockets. Sandblasted black finish.

• Derailleur: Shimano Tourney series rear derailleur, RD-FT35 profile, 7-speed derailleur.

• Shifter: Shimano SL-TX50-7R rear shifter, right, 7-speed profile

• Shift cable: Rear shift cable, total length 1860 mm, consisting of a 1580 mm section from the shifter to the rear frame stay and a 280 mm section from the frame stay to the rear shifter.

• Seatpost: Promax 6061 aluminum alloy seatpost, SP-114 profile, 27.2 mm x 350 mm.

• Seat: Black leather, SR A054UE0 profile

• Seat clamp: Seatpost lock mount, SZ-05 profile + QR-11B, 31.8 mm clip diameter with M6 bolt at 55 mm length

• Front fork suspension: 6061 aluminum alloy mechanical shock absorbers, MOZO T-40 153L profile, 153 mm length

• Headset bearings: Steerer head bearing assembly, H185B profile (1-1/8 28.6 mm x 44 mm - 30 mm x 44 mm), 11.5 mm height

• Handbrake lever / handlebar-mounted brake lever: PC/ABS and aluminum alloy, KB-039 profile, IP54/IP65 waterproof rating

• Brake rotor (disc): 180 mm diameter

• Rear brake cable: 1950 mm

• Cable Front brake: 1000 mm

• Kickstand: XH355 profile 220 mm-280 mm

• Front fender: Front fender wheel cover, P100 profile, plastic-coated with fender reinforcement

• Rear fender: Rear fender wheel cover, P100 profile, plastic-coated with fender reinforcement

• Pedals: WELLGO aluminum alloy pedals, F178 profile

• Grips: Silicone handlebar grip set, ZN-037 profile

• Tires: Innova 20x4.0 all-season, all-weather, all-terrain tires for electric bikes / fat bikes / fat tires / mountain bikes

• Tubes: Innova 20x4 inner tubes for electric bikes / fat bikes / fat tires / mountain bikes (inner tubes)

• Includes: Rear rack Aluminum alloy



Model Specifications

• Maximum load capacity: 250 lb (136 kg)

• Top speed: up to 32 km/h (20 mph)

• Range: up to 64 km per charge, depending on terrain and rider weight

• Charging time: 4 to 6 hours
