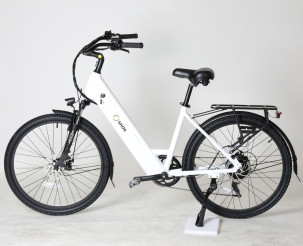

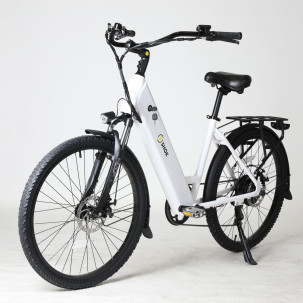

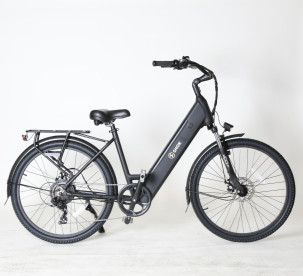

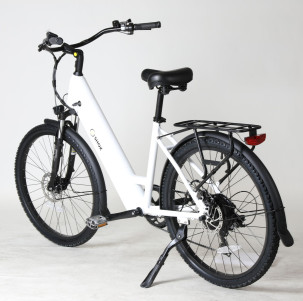

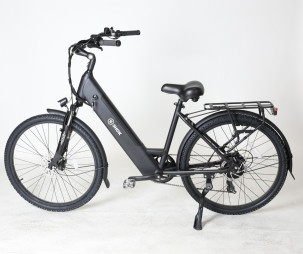

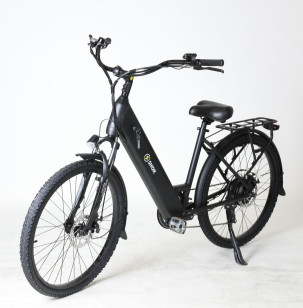

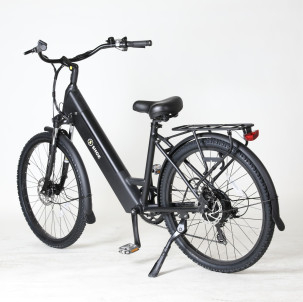

SHOK NOVA

ELECTRIC BIKE URBAN

City Ebike 48V, 500W, 10.4Ah 500Wh

Fully equipped with 48V 500W brushless motor, LCD display, Zoom forks, Shimano 7 speed set, KMC chain and Wuxing levers. Promax aluminum low profile seat post, aluminum handlebars, aluminum rims and fully aluminum low step-through frame design produces a high power to weight ratio. Lighter weight decreases battery usage and extends user range while creating an overall smoother ride; also makes it easier to store/manoeuvre when not in use.

Easily adjustable seat and handlebar heights further facilitate storage while accommodate all rider sizes. Elite Kenda tires with carefully matched all-weather, all-season, all-terrain tread profile. Compact, powerful, elegant, the SHOK Nova is the next level in entry step-through city bikes.

FICHE TECHNIQUE

Front & Rear Tires — Kenda 26×2.0 K885

Front & Rear Inner Tubes — Kenda 26×2.0

Front & Rear Rims — 26" x 13G × 36H, Aluminum Alloy

Front Suspension — Zoom, Aluminum Alloy Crown & Leg Fork Suspension

Chain — Bicycle, KMC, 118 Link

Freewheel — Cassette, Shimano 7-Speed Multiple Sprocket (AMFTZ5007428)

Shifter — Shimano Tourney 7 Speed Shifter (ASLTX50R7CT)

Derailleur — Shimano Tourney 7 Speed Derailleur (ARDTY300D)

Crank set — 48T, Forged Aluminum AL-6061-T6 Gears

Electric Motor — 48V, 500W Brushless MXUS Geared Rear Hub Motor

Display — LCD Instrument Panel, 1.8" Screen, IP65. Selections: 5 Speeds, Battery Power, Max Speed, and Distance Indicator.

Battery — 48V, 10.4Ah, 500Wh, DC2.1 Port Profile, Lithium-ion

Battery Management System — BMS, 48V, Continuous

Controller — 48V, Square Wave

Maximum Speed — 32 km/h

Throttle Assembly — Electric Thumb Throttle Unit + PAS Sensor

Charger — 48V, 2A, Lithium-ion, DC2.1, UL/ULC

Frame — Aluminum Alloy #6061 with Internal Hidden Battery Compartment

Handlebar — Aluminum Alloy, 650 mm

Seat Post — Seat Support Stem, Promax adjustable 6061 Aluminum Alloy

Foot Pedals — Aluminum alloy

Brakes — Mechanical Disc Brake

Brake Rotor — 160 mm

Brake Levers — Electric Motor Signal Termination Enabled, Aluminum Alloy, Wuxing

Seat — Black Leather, Ultra soft / Thick / Plush

Front Light — LED Headlight Included

Rear Light — LED Taillight Included

Front Fender / Front Wheel Cover — Included

Rear Fender / Rear Wheel Cover — Included

Rear Carrier / Rear Rack — Included

Matt Gray SHOK Profile

All our vehicles are assembled and adjusted by certified technicians to ensure their proper functioning.
